Standard Series

Standard Platform
5HP - 25HP Packaged VFD Systems
Our Standard Series pumping systems offer all of the benefits of VFD without the expense of a flip top cover. The pump and controls are mounted on a welded aluminum frame and the pump has a separate lockable cover to protect it from the elements.

These systems are ideal for booster applications because the VFD can adjust the speed of the motor to compensate for changes in the incoming pressure. This assures constant accurate pressure control under a wide range of conditions.

Pumping systems are available with either centrifugal or submersible pumps and are easy to install. These systems will operate on 230 volt single phase power up to 20 horsepower allowing for greater pumping capabilities in areas were there is no three phase power. More reliable three phase motors are used even with a single phase power source.
A fused disconnect switch with current limiting fuses and surge protection is provided in each pump station for connection to the voltage source. All other electrical connections are made at the factory.

Galvanized threaded fittings are used on the discharge manifold for ease in connecting and maintenance.

Yaskawa VFD
Features
  • VFD offers soft start.
  • Constant accurate pressure control
  • Under/over voltage protection.
  • Over current protection.
  • Low pressure shut off.
  • Overload capacity nominal 110%
    60 seconds 150% peak.
  • Auto restart after power loss with non volatile memory/program retention.
  • 32 bit microprocessor with IGBT technology.
  • LCD keypad display with 5 lines x 16 characters back lit with copy function.
  • Elapsed time monitor and fault log.
  • RS-422/485 port: Modbus protocol with ethernet com.
  • Meter functions: Input voltage, Amperage, Kilowatts.
  • MTBF 28 years
  • UL Listed Industrial Control Panel.
  • Fiberglass enclosure over pump.
  • NEMA type 3R enclosure for VFD and controls.
  • Disconnect switch with current limiting fuses.
  • Transient surge protection.
  • Thermostat controlled cooling fan.
  • 4-20 ma stainless steel pressure transducer.
  • Welded aluminum frame with anchor brackets.
  • Galvanized threaded fittings for manifold.
  • 2 gallon hydro-pneumatic pressure tank.
  • Check valve and discharge isolation valve.
  • Berkeley pumps.
  • 1–Year Warranty.
  • Made in the USA.

Low Profile Series

Complete Pump Stations
5HP - 60HP Packaged VFD Systems
Our LP Low Profile Series feature a welded aluminum frame that the pump and VFD control cabinet are mounted to. This provides a ridged frame for securing to the concrete pad. The entire pump system is enclosed in a flip top fiberglass cover that has stainless steel hardware and a lockable hasp for safety and security.

These systems are ideal for booster applications because the VFD can adjust the speed of the motor to compensate for changes in the incoming pressure. This assures constant accurate pressure control under a wide range of conditions.

Pumping systems are available with either centrifugal or submersible pumps and are easy to install. These systems will operate on 230 volt single phase power up to 20 horsepower allowing for greater pumping capabilities in areas were there is no three phase power. More reliable three phase motors are used even with a single phase power source.
A fused disconnect switch with current limiting fuses and surge protection is provided in each pump station for connection to the voltage source. All other electrical connections are made at the factory.

Roll-groove type fittings are used on the discharge manifold for ease in connecting and maintenance.

Yaskawa VFD
Features
  • VFD offers soft start.
  • Constant accurate pressure control
  • Under/over voltage protection.
  • Over current protection.
  • Low pressure shut off.
  • Overload capacity nominal 110%
    60 seconds 150% peak.
  • Auto restart after power loss with non volatile memory/program retention.
  • 32 bit microprocessor with IGBT technology.
  • LCD keypad display with 5 lines x 16 characters back lit with copy function.
  • Elapsed time monitor and fault log.
  • RS-422/485 port: Modbus protocol with ethernet com.
  • Meter functions: Input voltage, Amperage, Kilowatts.
  • MTBF 28 years.
  • UL Listed Industrial Control Panel.
  • Fiberglass enclosure over entire pump station.
  • NEMA type 3R enclosure for VFD and controls.
  • Fused disconnect with current limiting fuses.
  • Transient surge protection.
  • Thermostat controlled cooling fan.
  • 4-20 ma stainless steel pressure transducer.
  • Welded aluminum frame with anchor brackets.
  • Roll-groove fittings for manifold.
  • 2 gallon hydro-pneumatic pressure tank.
  • Check valve and discharge isolation valve.
  • Berkeley pumps.
  • 1- Year Warranty.
  • Made in the USA.

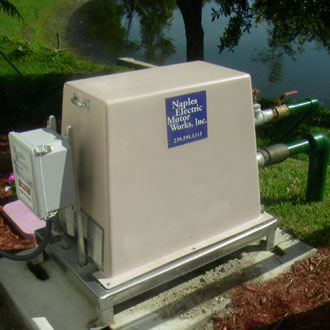

Economy Series


Economic, Low Cost, Turn-key, Pump Station

Economic, Low Cost, Turn-key, Pump Station

These pumping systems are for smaller installations where VFD isn’t required. They are turn-key systems and easy to install. The unique design eliminates pump cycling. Combined with our lake in-take system and a pre-cast concrete pad the installer has a complete package to make installation fast and simple.

NEMA 3R UL Listed Industrial Control Panel

Pump and controls mounted on an aluminum frame.

A lockable fiberglass cover protects the pump, adds esthetics, and security to the system.

They are available for either clock start or pressure demand - flow maintained systems.

Motor starter with overload protection.
2 gal. pressure tank, flow & pressure switch thermal sensor in volute.
24 volt AC relay for connection to time clock (clock start)
Suction and discharge piping are galvanized.
Brass ball valve and check valve.

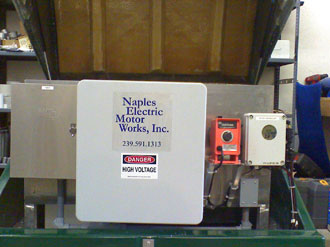

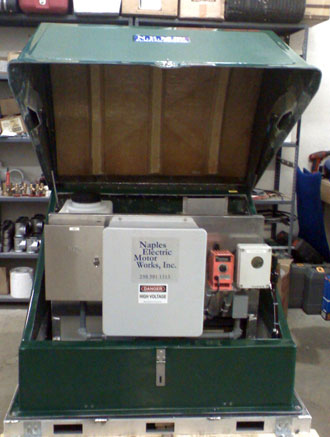

Fertigation/ Filtration



These are systems that combine one or more of the following, Irrigation Controller, Filtration, Flow meter/ Main valve, Injectors, Etc. when a pump is not needed. These systems are built to meet customers supplied specs. Feel free to contact us to help you with your next project.


Waler Filtration Systems

Irrigation Pump Stations

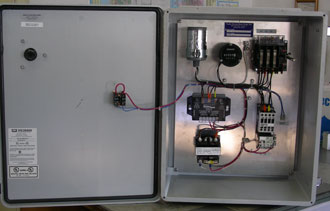

Custom Control Panels


We offer UL listed control panels for a variety of applications such as re-charge wells, fountains, and water features. These can be built to meet customer supplied specifications.

Custom Control Panels Custom Control Panels

Options:

Communication Inter-face for Central Control
Lake In-Take
